| Bahagian NO. | Dimensi mm | Berat badan kg | ||||||||||||
| d1 | g | a1 | a2 | b1 | b2 | d2 | d3 | f | L1 | L2 | L3 | r | ||
| H9 | ±0.5 | h11 | 0.50 -0.20 | B13 | 0.70 -0.15 | ±0.3 | ±0.2 | ±0.5 | ±0.4 | ±0.3 | ±0.5 | |||
| G18X36 | 18 | 36 | 36 | 36 | 18 | 18 | M18X2.5 | 30 | 1.0 | 94 | 72 | 27 | 1.5 | 0.39 |
| G18X36FG | 18 | 36 | 36 | 36 | 18 | 18 | M18X1.5 | 30 | 1.0 | 94 | 72 | 27 | 1.5 | 0.39 |
| G20X40 | 20 | 40 | 40 | 40 | 20 | 20 | M20X2.5 | 34 | 1.0 | 105 | 80 | 30 | 1.5 | 0.55 |
| G20X40FG | 20 | 40 | 40 | 40 | 20 | 20 | M20X1.5 | 34 | 1.0 | 105 | 80 | 30 | 1.5 | 0.55 |
| G20X80 | 20 | 80 | 40 | 40 | 20 | 20 | M20X2.5 | 34 | 1.0 | 145 | 120 | 30 | 1.5 | 0.80 |
| G20X80FG | 20 | 80 | 40 | 40 | 20 | 20 | M20X1.5 | 34 | 1.0 | 145 | 120 | 30 | 1.5 | 0.80 |
| G25X50 | 25 | 50 | 50 | 50 | 25 | 25 | M24X3 | 42 | 1.5 | 132 | 100 | 36 | 1.5 | 1.10 |
| G25X50FG | 25 | 50 | 50 | 50 | 25 | 25 | M24X2 | 42 | 1.5 | 132 | 100 | 36 | 1.5 | 1.10 |
| G28X56 | 28 | 56 | 55 | 55 | 28 | 28 | M27X3 | 48 | 1.5 | 148 | 112 | 40 | 2.0 | 1.50 |
| G28X56FG | 28 | 56 | 55 | 55 | 28 | 28 | M27X2 | 48 | 1.5 | 148 | 112 | 40 | 2.0 | 1.50 |
| G30X54FG | 30 | 54 | 55 | 55 | 30 | 30 | M27X2 | 48 | 1.5 | 148 | 110 | 40 | 2.0 | 1.44 |
| G30X60 | 30 | 60 | 60 | 60 | 30 | 30 | M30X3.5 | 52 | 1.5 | 160 | 120 | 42 | 2.0 | 1.97 |
| G30X60FG | 30 | 60 | 60 | 60 | 30 | 30 | M30X2 | 52 | 1.5 | 160 | 120 | 42 | 2.0 | 1.97 |
| G35X54FG | 35 | 54 | 70 | 70 | 35 | 35 | M36X2 | 60 | 2.0 | 188 | 144 | 54 | 3.0 | 2.93 |
| G35X72 | 35 | 72 | 70 | 70 | 35 | 35 | M36X4 | 60 | 2.0 | 188 | 144 | 54 | 3.0 | 2.93 |
| G35X72FG | 35 | 72 | 70 | 70 | 35 | 35 | M36X2 | 60 | 2.0 | 188 | 144 | 54 | 3.0 | 2.93 |
| G36X72 | 35 | 72 | 70 | 70 | 36 | 36 | M36X4 | 60 | 2.0 | 188 | 144 | 54 | 3.0 | 2.93 |
| G36X72FG | 35 | 72 | 70 | 70 | 36 | 36 | M36X2 | 60 | 2.0 | 188 | 144 | 54 | 3.0 | 2.93 |
| G40X84FG | 40 | 84 | 85 | 85 | 40 | 40 | M42X2 | 70 | 3.0 | 232 | 168 | 63.5 | 5.0 | 5.64 |
| G42X84 | 42 | 84 | 85 | 85 | 42 | 42 | M42X4.5 | 70 | 3.0 | 232 | 168 | 63.5 | 5.0 | 5.34 |
| G42X84FG | 42 | 84 | 85 | 85 | 42 | 42 | M42X2 | 70 | 3.0 | 232 | 168 | 63.5 | 5.0 | 5.34 |
| G50X96 | 50 | 96 | 96 | 96 | 50 | 50 | M48X5 | 80 | 3.0 | 265 | 192 | 73 | 5.0 | 7.86 |
| G50X96FG | 50 | 96 | 96 | 96 | 50 | 50 | M48X2 | 80 | 3.0 | 265 | 192 | 73 | 5.0 | 7.86 |

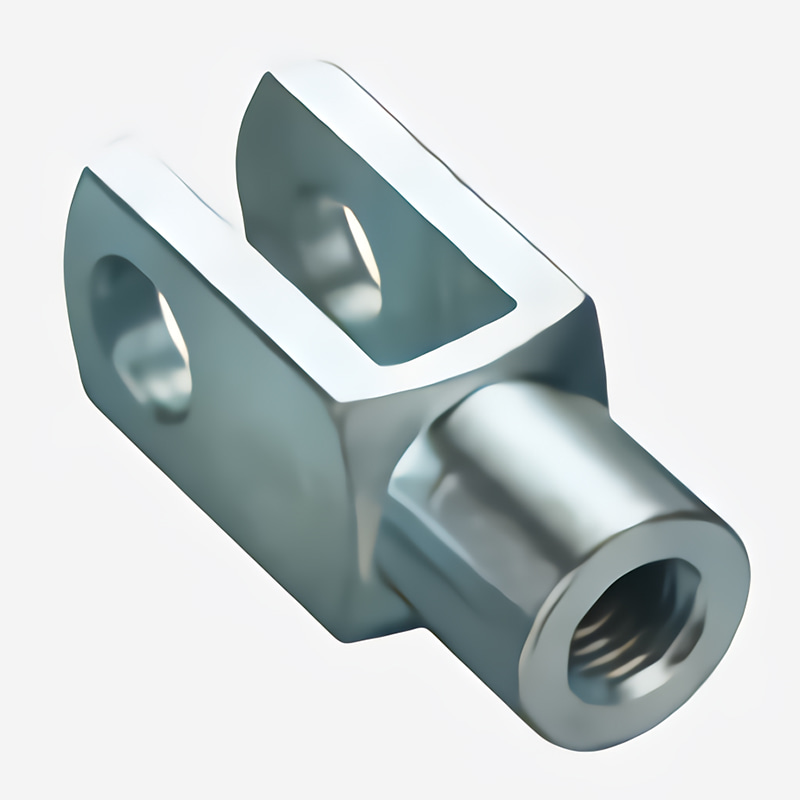

1.Standard:DIN71752
2. Jika ia adalah benang kiri, maka suffx"LH"akan ditambahkan pada nombor bahagian sebagai tanda benang, seperti "G4X8LH"
3. Bahan: Fe360B; Bahan alternatif: ASTM 1020,1045, keluli tahan karat AISI304.
4. Rawatan permukaan: Bersalut zink putih, Alternatif: Bersalut zink kuning,
